Our Skid-Mounted Lead-Lag Vessel Systems using SULFURTRAP® adsorbents provide reliable H2S and light mercaptan removal for oil and gas, biogas, landfill gas and other industrial streams.
Designed for continuous operation, these packaged systems are in a vertical lead-lag configuration including SULFURTRAP® adsorbent media for maximizes sulfur loading, extends run life, and allows uninterrupted operation during media changeout.
Standard sizes are available for immediate lease or purchase, with custom engineered systems also available.
SULFURTRAP® adsorbent media is engineered for high-performance H2S removal in variable conditions commonly found in oil & gas, biogas and landfill applications.
Adsorbent solutions for gas and liquid streams: View SULFURTRAP® Line »
Our skid-mounted H2S removal vessel systems with SULFURTRAP® adsorbent media are available for lease or purchase, allowing you to align with your project timelines and budget.
NACE MR0175: Lead/Lag Skid-Mounted System materials and construction meet NACE requirements
Lead-Lag Design: Offers continuous operation and full utilization of the adsorbent
Easy and Safe Change-outs: Media replacement in <1 working shift. Free flowing spent adsorbent allows for short, easy and safe change-outs
Ready to Ship: Shipped from Texas, USA
Multiple Sizes: 4 standard sizes available to fit most projects and budgets
Customizable:
Optional equipment available
Custom design available upon request

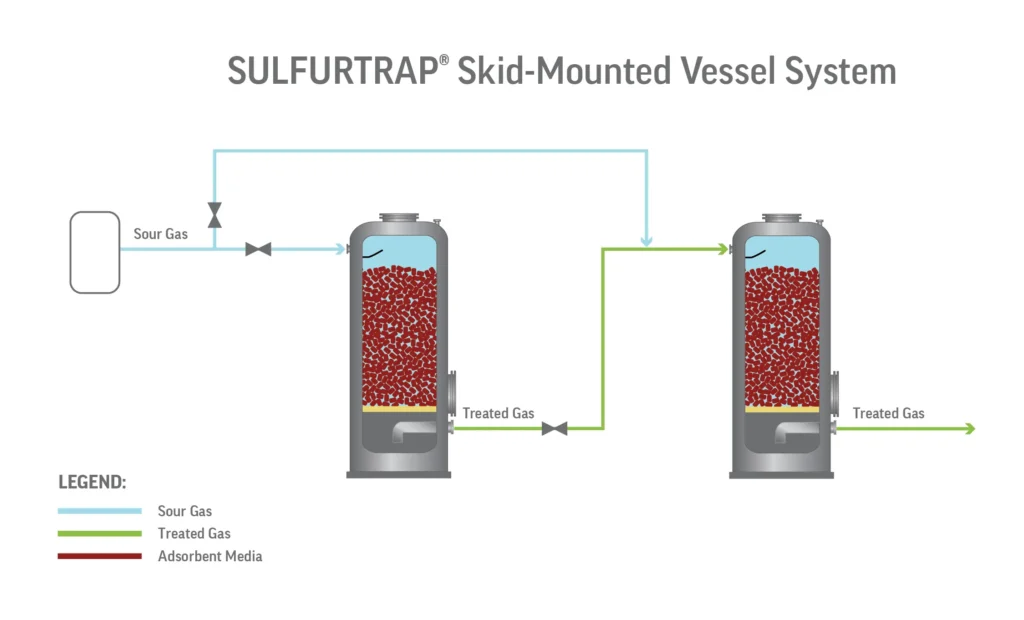

SULFURTRAP® Skid-Mounted Vessel System has two vertical pressure vessels in lead-lag configuration. The sour stream is fed to the top section of the lead vessel passing through both vessels as in a series arrangement. Once the adsorbent in the lead vessel has been exhausted, the sour feed is redirected to only flow through the lag vessel loaded with fresh adsorbent. The lead vessel is then placed off-line to perform an adsorbent change-out. Finally, when the fresh adsorbent is loaded in the original lead vessel, the gas flow is reverted with the original lag vessel becoming the new lead vessel.
For over half a century, Merichem Technologies has provided innovative technology and equipment to the oil and gas industry. With proven solutions, we’ve helped our customers eliminate the obstacles to performance and profitability.
In addition to a range of proprietary treatment technologies, Merichem Technologies offers engineering, design, fabrication, analytics, testing and service support to help our customers meet their specifications, performance and warranty requirements.
Merichem Technologies has a solution for the H2S present in your streams. The chart offers suggested ranges for our SULFURTRAP® media and LO-CAT® liquid redox technology.
If your flow or H2S concentration is between the two areas, we are happy to help you confirm which system could be most appropriate based on the needs of your operations.
With extensive capabilities and an array of adsorbent options, Merichem Technologies helps customers all over the world address some of their most challenging treating problems.
A lead-lag setup allows for continuous operation and can protect against unexpected H2S breakthrough.
These systems can treat both gas and liquid streams.
Yes, the lead-lag system helps with fluctuating conditions by having two vessels ready with adsorbent media. The bed life of the media may vary depending on H2S concentrations and feed stream flow rates.
Two vertical vessels in lead-lag configuration, piping within the skids, valves and instrumentation. We provide an optional upstream knock-out pot and downstream filter as well as an optional ladder and platform.
Yes.
Site preparation can vary from traditional foundation for anchoring on a concrete pad, helical piles or gravel.
Yes, lifting lugs, anchoring holes, ladders and platforms can be part of the standard design. The ladder and platform are sold/leased separately.
